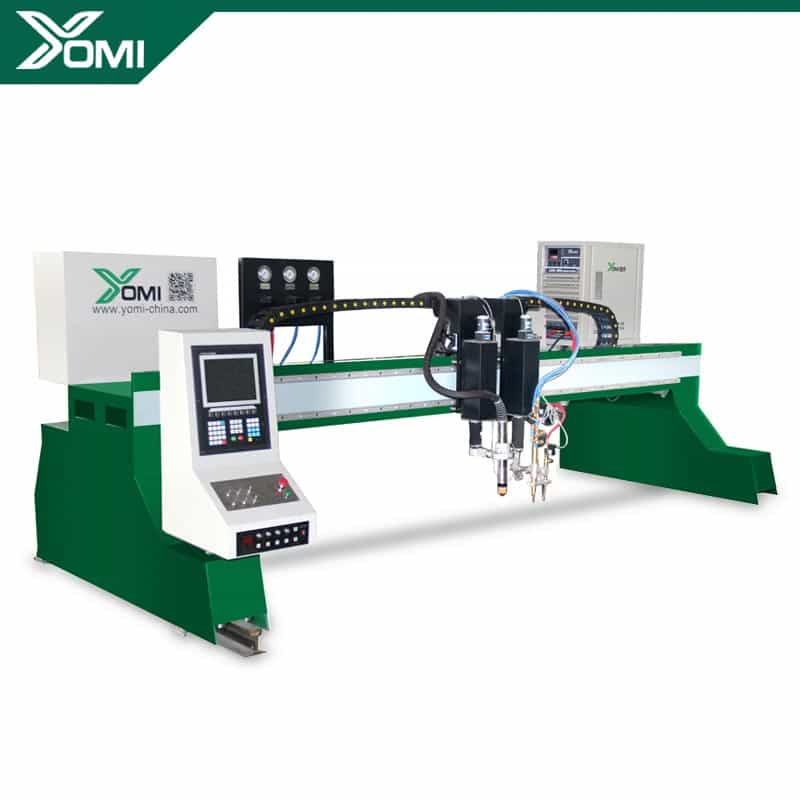

Gantry Metal Plate CNC Plasma and Flame Cutting Machine

Plasma cutter, metal plasma cutter, cnc cutting machine, gantry plasma cutter


Brief Introduction

The Gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting, it is characterized of high automation and efficiency, easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement. It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2D graphics, thus is widely used in metal cutting fields.

Parameters

Model

Gantry CNC Cutting Machine

Cutting area

3.15*8mcan be customized

Machine size

4*10m(according to customers’ needs)

Cutting method

Flame/Plasma

Cutting thickness

Flame cutting: 6-150mm

Plasma cutting: according to plasma power

Flame cutting speed

20-700mm/min

Ignition mode

Automatic ignition

Plasma cutting speed

According to plasma power

Plasma torch anti-collision protection system

Yes

Driving method

Servo or stepper

Software

Starcam

Working condition

Working pressure of compressed gas

7Mpa

Required gas flow of plasma

4500L/H

Working environment

Ventilation, no concussion

Power voltage

5KW(not include plasma power)

Types of gas

Acetylene Propane

Features



1. Steel hollow beam design ensures good heat dissipation without deformation.

2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.

3. Fully functionalized CNC system and opt coupler device enhance the super anti-jamming capability of the plasma system.

4. World’s top branded components and circuits ensure long service life.

5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.

6. Torch height controller: High control precision, stable performance, strong anti-jamming capability

Functions

This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required, thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Advantages

1. AutoCAD version of the project design can be directly generated CNC machine code. Dimensional simulation operation, oversized EGES DXF SAT and STL and other software compatibility.

2. User-friendly design, casting parts precision machining equipment to ensure high precision, high stability, high service life.

3. One year warranty, free maintenance throughout service time.

Cutting Samples

Our Services

1.One year warranty, free maintenance throughout service time. If Spare parts are broken, maintenance or replacing of new parts are free.

2.Free technical support through email, telephone, online chat tools.
